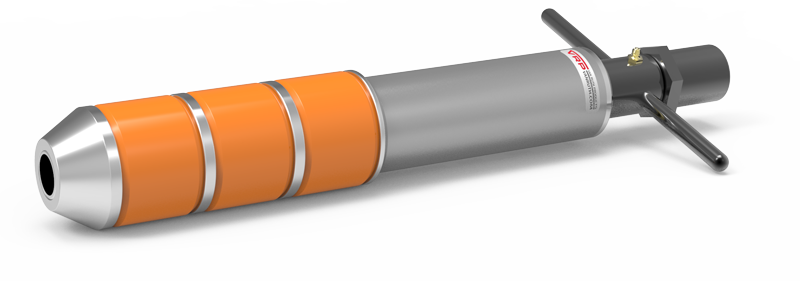

mechanical HAND SET PACKER

HAND SET PACKERS (HSP) are a mechanical type packer used for grouting and permeability testing. The Mechanical handset packer is a reusable item for low pressure grouting holes near the surface (as the setting depth is approximately 1m). The packer is set and held in the hole by the force of the packing segment against the hole wall only and that pressure is applied by screwing the handle up the thread to expand the packing segment. This packer relies on the operator to ensure adequate tightening of the packer in the hole. The packer must be rock bolted to the face of the hole in all situations before grouting. Grout pump is connected by either a 3/4", 1" or 2" BSP socket depending on packer size Insertion Depth 1.2 meters Hand Set Packers are available to suit hole sizes up to 76mm Hand Set Packers come with a grease nipple to lubricate thread to ensure consistant reliability. Construction: Steel, Aluminium and Urethane Download Info & Instructions for Use

mechanical HAND SET PACKER

HAND SET PACKERS (HSP) are a mechanical type packer used for grouting and permeability testing.

The Mechanical handset packer is a reusable item for low pressure grouting holes near the surface (as the setting depth is approximately 1m). The packer is set and held in the hole by the force of the packing segment against the hole wall only and that pressure is applied by screwing the handle up the thread to expand the packing segment. This packer relies on the operator to ensure adequate tightening of the packer in the hole. The packer must be rock bolted to the face of the hole in all situations before grouting. Grout pump is connected by either a 3/4", 1" or 2" BSP socket depending on packer size

Insertion Depth 1.2 meters

Hand Set Packers are available to suit hole sizes up to 76mm

Hand Set Packers come with a grease nipple to lubricate thread to ensure consistant reliability.

Construction: Steel, Aluminium and Urethane

Download Info & Instructions for Use
